WIPER BLADES FOR COMMERCIAL VEHICLES
One range.
The whole fleet.
Trucks, buses, heavy-duty vans, tractors and machinery. 37 master references developed to original equipment specifications, with certified OE matching quality.
37
Master references
551
Vehicle models
58
CV makes covered
95
%
Of the European CV parc
100
%
Plug & Play
Six reasons to stock it
A range designed for the warehouse and the trade counter: full commercial vehicle coverage with the smallest possible number of references.
Complete CV coverage
37 master references covering 551 models from 58 makes: 95 % of the European commercial vehicle parc.
Hybrid technology
Flex flat blades for modern fleets and reinforced metal blades for the traditional parc, under one brand.
Plug & Play
Pre-fitted adapters. Geometric fit, compatibility and function identical to the original part, with no rework at the workshop.
S Series · integrated spray
The washer jet is built into the blade structure. No external kits to complicate fitting.
Fewer part numbers, faster turnover
Adapter engineering lets one reference cover multiple applications: less capital tied up in stock and faster turnover in the warehouse.
Data on the industry platforms
Complete technical data and OE cross-references on TecDoc, Inforicambi and E.T.A.I. Integrated ordering via TecCom.
Developed to original equipment specifications
Each reference is defined from the technical specification of the original part: length, frame geometry, arm type and fitting system. Before series production, our technical and quality department validates every model against original samples.
- Technical specification based on the original part
- Fit and compatibility validated against OE samples
- Tolerance control on adapters and arm fittings
- Technical data sheet per reference: dimensions, arm, adapter and EAN

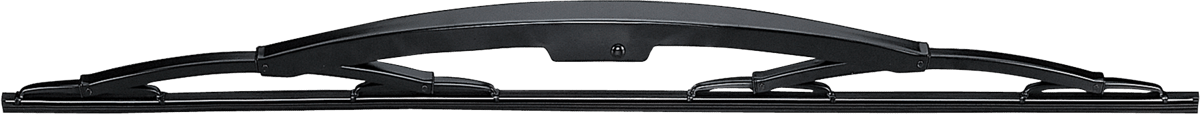

Reinforced metal · 25 references + 2 kits
Reinforced metal frame for the traditional truck, bus and machinery parc. From 400 to 1,000 mm, with universal, narrow-arm, wide-arm, extra-wide-arm and multi-clip fittings.
Flex · flat blade · 10 references
Flat blade with integrated spoiler: even wiping pressure along the whole sweep and stability at high speed. For modern fleets, from 550 to 700 mm.
One range for the whole professional parc
Trucks and tractor units
Buses and coaches
Heavy-duty vans
Tractors and machinery
Applications for the leading European makes —Volvo, Renault Trucks, DAF, MAN, Mercedes-Benz, Scania and Iveco— and up to 58 commercial vehicle makes: from modern fleets fitted with flat blades to the traditional parc fitted with reinforced metal blades.
Read the reference. Get it right first time.
The reference itself tells you the technology, the length, the fitting type and whether it includes a washer jet. Instant identification in the warehouse and at the counter, with no picking errors.
DVPF70WS = Duravision PRO · Flex · 700 mm · 12 mm wide arm · integrated spray
Technology
- No letter: reinforced metal
- F: Flex, flat blade with spoiler
- K: kit of 2 blades
Length
- 40 to 100: length in cm, from 400 to 1,000 mm
- 6555: in kits, both lengths (650 + 550 mm)
Fitting / arm
- No letter: universal, 8×3, 9×3 and 9×4 mm hook
- N: narrow arm, 9 mm (12 × 4 mm on NH and NS)
- W: wide arm, 12 mm (16 mm on 900 and 1,000 mm)
- XL: extra-wide arm, 14 mm
- M: multi-clip, arms from 16 to 27 mm
- T: T11 fitting (lift & slide)
Washer
- S: spray, washer jet integrated in the blade
- H: holder, clip-on washer jet holder
- L: long, long washer tube (12 cm)
37 master references

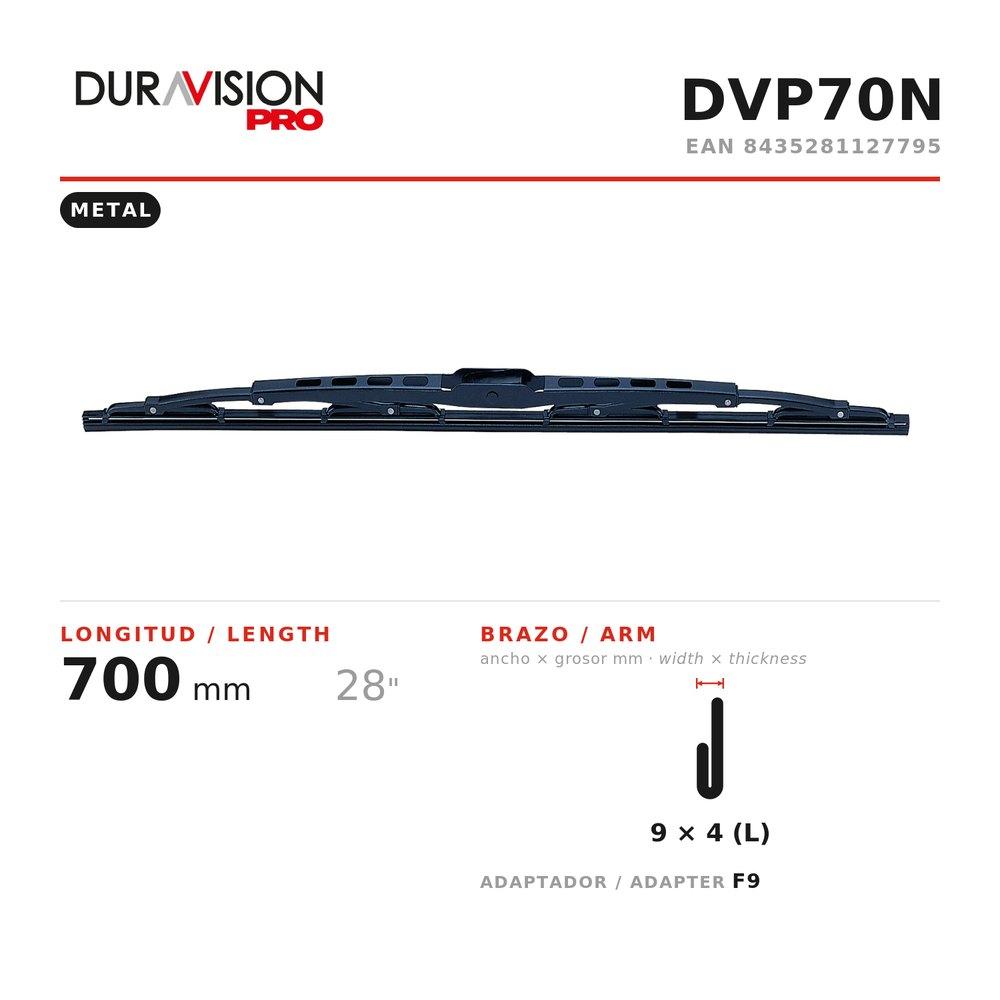

Check the technical data sheet for each reference: length, arm type, adapter, washer jet and EAN code.
Individual packaging designed for the warehouse
Each blade is supplied in its own box, ready to hang on the display or store on the shelf. Location, picking and counter sales without errors.
- Length visible at a glance: size in mm and inches highlighted on the front of the box.
- Technology and fitting identified: Flex or metal and fitting type, printed next to the reference.
- EAN code on every unit: direct scanning at goods-in, stocktaking and point of sale.
The whole range, with OE cross-references, in your electronic catalogues
DOGA PARTS is a Premium Data Supplier on TecDoc, E.T.A.I. and Inforicambi. Cross-references and OE equivalents available from day one, with fully automated ordering via TecCom.
Ask us for the full range
37 master references with applications and OE cross-references. Our sales team will prepare a range proposal tailored to your warehouse.
